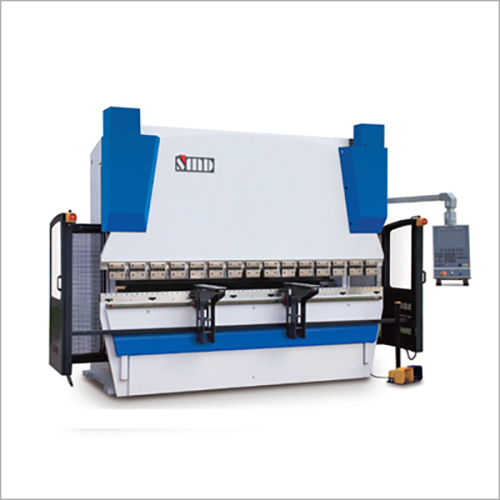

CNC Hydraulic Press Brakes

Get a Price/Quote

MOQ : 1 Unit

CNC Hydraulic Press Brakes Specification

Product Type
CNC Hydraulic Press Brakes

Power Source
Electricity

Operating Type
Automatic

Dimension (L*W*H)
PBC =300*1050*950 to 2200*4100*3600 Millimeter (mm)

Color
Blue,White

Usage & Applications
Industrial

CNC Hydraulic Press Brakes Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cheque, Cash Advance (CA)

Supply Ability
1 Unit Per Month

Delivery Time
1 Months

Main Domestic Market
All India

About CNC Hydraulic Press Brakes

NC/ CNC Hydraulic Press Brakes

1. CNC Press Brakes:
Range available - 50 ton to 4000 ton
Length - 2050 to 15000 mm
PBH Series - Y1Y2X, R + Hydraulic crowning
PBB Series - Y1Y2X + Hydraulic crowning
PBA Series - Y1Y2X

2. NC Press Brakes: X axis
CNC Controller: Delem, Netherlands/ Cybelec, Switzerland
Streamline design, high speed, high precision, high rigidity CNC sheet metal press brake

Other Information
Pay Mode Terms: L/C , T/T (Bank Transfer)

Technical Specifications

MODEL	NOMINAL PRESSURE	LENGTH OF WORK TABLE	DISTANCE BETWEEN UPRIGHTS	THROAT DEPTH	RAM STROKE	MAX DAY LIGHT	RAM SPEED	POWER OF MOTOR	LxWxH OVERALL DIMENSION	WEIGHT	VOLUME OF
Unit	KN	MM	MM	MM	MM	MM	MM/S	KW	MM	KG	LTR
PBB-160/5100	1600	5100	4200	410	215	400	120/10/110	11	5400 x1850 x3350	21000	800
PBB-220/5100	2200	5100	4200	410	215	400	120/10/110	15	5400x1860x3380	24000	750
PBB-220/6200		6200	5100						6500x1850x3430	28000	800
PBB-300/5100	3000	5100	4200	410	265	500	120/10/100	22	5400x2000x3360	29000	800
PBB-300/6200		6200	5100						6500x2000x3610	35000	900
PBB(A)-400/4100	4000	4100	3200	510	315	520	110/9/100	30	4400x2150x3480	27000(25000)	1000
PBB(A)-400/5100		5100	4200						5400x2160x3680	35500(30000)	1050
PBB(A)-400/6200		6200	5100						6500x2160x3910	43000(33000)	1200
PBB(A)-500/4100	5000	4100	3200	510	315	520	100/9/90	37	4400x2190x3700	33000(30000)	1050
PBB(A)-500/5100		5100	4200						5400x2290x4200	43000(33000)	1200
PBB(A)-500/6200		6200	5100						6500x2290x4500	53000(43000)	1300
PBB(A)-500/8200		8200	6500						8500x2290x5400	76000(64000)	1300
PBB(A)630/4100	6300	4100	3200	510	315	620	100/9/90	45	4400x2430x4000	46000(41000)	1200
PBB(A)630/5100		5100	4200						5400x2430x4200	62000(55000)	1200
PBB(A)-630/6200		6200	5100						6500x2430x4500	68000(58000)	1200
PBB(A)-630/8200		8200	6500						8500x2430x4630	85000(69000)	1500
PBB(A)-800/6200	8000	6200	5100	610	410	720	100/9/80	75	6500x2990x5000	89000(77000)	1500
PBB(A)-800/8200		8200	6500						8500x2990x5400	125000(115000)	1800
PBB(A)-1000/6200	10000	6200	5100	610	410	720	110/9/80	90	6500x2760x4800	102000(87000)	1500
PBB(A)-1000/8200		8200	6500						8500x2760x5300	125000(115000)	2000
PBB(A)-1200/6200	12000	6200	5100	610	410	720	90/8/70	90	6500x2940x5000	110000(95000)	1600
PBB(A)-1200/8200		8200	6500						8500x2940x5400	148000(130000)	2100
PBB(A)-1200/12000		12000	9500				90/8/60		12200x3700x7900	250000(210000)	2500
PBB(A)-1600/8200	16000	8200	6500	610	410	720	70/7/60	2X55	8500x3300x6700	220000(190000)	2100
PBB(A)-1600/12000		12000	9500	1000	500	1250	70/7/60	2X55	12200x4700x9900	350000(290000)	2500
PBB(A)-2000/12000	20000	12000	9500	1250	600	1600	70/7/60	2x75	12200x47000x9900	420000(355000)	2500
PBB(A)-2500/12000	25000			1500	600	1900	70/6/50	2X75	12200x5300x9900	490000(430000)	3000
PBB(A)-3000/12000	30000			1500	600	1900	70/6/50	2X90	12200x3740x8800	600000(520000)	3500

Versatile Industrial Solutions

Our CNC hydraulic press brakes adapt to multiple industrial scenarios, providing seamless operation for small workshops and large-scale manufacturing units alike. With their robust build and automatic controls, these machines drive efficiency and precision in metalworking tasks.

Advanced Automation for Enhanced Productivity

Fitted with state-of-the-art CNC controls, our press brakes automate complex bending processes, minimizing manual intervention. This automatic operation not only accelerates production cycles but also ensures consistent, repeatable results across different projects.

FAQ's of CNC Hydraulic Press Brakes:

Q: How do CNC hydraulic press brakes operate automatically?

A: CNC hydraulic press brakes use computer numerical control (CNC) technology to automate the bending process. Operators input specific dimensions and shapes, and the machine uses pre-programmed instructions to execute precise bends, ensuring accuracy and reducing manual handling.

Q: What are the recommended industrial uses for these press brakes?

A: These CNC hydraulic press brakes are suited for bending various metal sheets and plates in applications such as automotive parts, structural frameworks, and general metal fabrication, making them indispensable for industrial manufacturing settings.

Q: When is it beneficial to choose a press brake with larger dimensions?

A: Selecting a larger press brake, such as one with dimensions up to 2200*4100*3600 mm, is advantageous when working with bigger metal sheets or requiring greater bending capacity for large-scale or high-volume production runs.

Q: Where are your CNC hydraulic press brakes manufactured and supplied from?

A: Our CNC hydraulic press brakes are manufactured, serviced, and supplied from our facilities in India, ensuring efficient service and support nationwide.

Q: What is the process for setting up the machine for industrial use?

A: Setting up involves positioning the press brake according to the desired specifications, configuring the CNC controls with job parameters, and conducting a test run. Our support team provides installation and training to ensure smooth and safe operation.

Q: How does electrical operation benefit industrial users?

A: Operating with electricity, these press brakes provide stable, consistent power, leading to reliable performance, precise automation, and energy efficiency. This also simplifies maintenance compared to hydraulic-only models.
