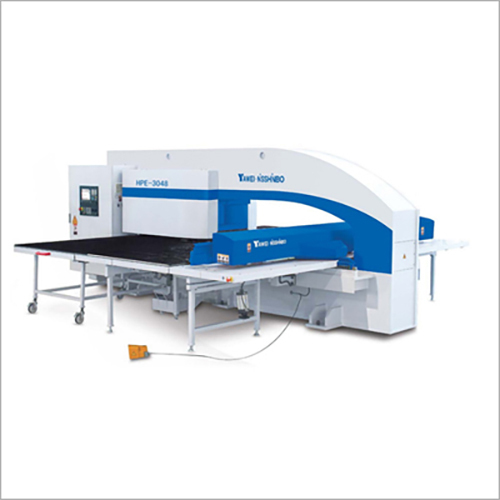

CNC Turret Punch Presses

Get a Price/Quote

MOQ : 1 Unit

CNC Turret Punch Presses Specification

Product Type
Other

Power Source
Electricity

Operating Type
Automatic

Surface Treatment
Painted

Color
White

Usage & Applications
Industrial

CNC Turret Punch Presses Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
1 Unit Per Month

Delivery Time
1 Months

Main Domestic Market
All India

About CNC Turret Punch Presses

Our company's CNC Turret Punch Presses are manufactured using latest techniques and genuine materials. Hence, they are widely appreciated and demanded among the valued clients. These are available 1250 x 2500 mm to 1500 x 5000 mm at market leading prices. In order to meet the varied demands of the arena, we develop CNC Turret Punch Presses range within the provided time limit.

Features:

Minimal maintenance requirements
Smart operation
Robust construction

HIQ series : High Speed Intectualized CNC Turret Punch Press : 6 axis CNC turret punch presses
HPI Series CNC Turret Punch Press: 5 axis CNC turret punch presses
HPH Series CNC Turret Punch Press: 4 axis CNC turret punch presses

Other Information

Pay Mode Terms: L/C (Letter of Credit), T/T (Bank Transfer)

Technical Specifications

SPECIFICATIONS	UNIT	HPE- 3044	HPE- 3047	HPE- 3048	HPE- 3057	HPE- 3058	HPE-30510
NOMINAL PRESSURE	KN	300	300	300	300	300	300
MAX. SHEET DIMENSION	MM	1200x2500	1250x4000	1250x5000	1500x4000	1500x5000	1500x5000
CARBON STEEL SHEET	MM	6.35	6.35	6.35	6.35	6.35	6.35
STAINLESS STEEL SHEET	MM	4	4	4	4	4	4
MAX. ONE-TIME PUNCHING DIAMETER	MM	88.9	88.9	88.9	88.9	88.9	88.9
DIES		36	36	36	36	36	36
PUNCHING ACCURACY	MM	0.1	0.1	0.1	0.1	0.1	0.1
PUNCHING TIMES PER MINUTE	CPM	1500	1500	1500	1500	1500	1500
MAX. PUNCHING FREQUENCY (1mm step 6mm punching stroke)	CPM	700	700	700	700	700	700
MAX. PUNCHING FREQUENCY (25.4mm step 6mm punching stroke)	CPM	295	295	295	295	295	295
MAX. SHEET SPEED	M/MIN	102	102	102	102	102	120
TURRT SPEED	RPM	30	30	30	30	30	30
AXES OF CONTROL		5(x,y,z,T,c)	5(x,y,z,T,c)	5(x,y,z,T,c)	5(x,y,z,T,c)	5(x,y,z,T,c)	6(x,y1,Y2,z,T,c)
Average Power Consumption	KW/h	5.1	5.1	5.1	5.1	5.1	5.1
AIR PRESSURE	MPA	0.6	0.6	0.6	0.6	0.6	0.6
LENGTH	MM	5600	5600	5600	6100	6100	6100
WIDTH	MM	2300	4000	5000	4000	5000	6200
HEIGHT	MM	2200	2200	2200	2200	2200	2200
WEIGHT	KG	14000	15000	16000	18000	19000	22000

Advanced Automation for Precision

Automatic CNC Turret Punch Presses leverage computerized controls for flawless metal punching processes. By automating intricate tasks, they minimize human error and deliver detailed, repetition-free results, making them ideal for precision-focused industries. The integration of electrical power sources further optimizes efficiency, supporting streamlined workflows across manufacturing plants.

Durable Surface with Painted Treatment

The machine's painted surface not only contributes to its clean, white appearance but also safeguards the press from corrosion and wear. This surface treatment extends the lifespan of the equipment, ensuring consistent performance even under rigorous use in industrial settings, making maintenance simpler and downtime less frequent.

FAQ's of CNC Turret Punch Presses:

Q: How does a CNC Turret Punch Press operate automatically?

A: The CNC Turret Punch Press functions through computer numerical control (CNC) systems. Once the punching design is uploaded, the machine executes the programmed tasks automatically, using its electrical power source to move the punch head and workpiece with precision.

Q: What are the benefits of the painted surface treatment on these presses?

A: The painted surface treatment protects the machine from corrosion, abrasion, and industrial contaminants, ensuring long-lasting durability and reduced maintenance requirements. This results in both aesthetic appeal and extended service life in harsh environments.

Q: When should industries consider using these machines?

A: Industries should utilize CNC Turret Punch Presses when there is a need for high-volume, repetitive metal punching with detailed patterns. They're essential for sectors requiring accuracy, such as automotive, electrical enclosure, and sheet metal fabrication industries.

Q: Where can these CNC Turret Punch Presses be sourced in India?

A: These presses are widely available from established manufacturers, service providers, and suppliers across India, catering to diverse industrial requirements and offering installation, service support, and after-sales assistance.

Q: What is the typical process for punching metal using this equipment?

A: The process begins by preparing a metal sheet and loading the desired punching pattern into the CNC system. The press then automatically aligns and punches precise holes and shapes as programmed, resulting in consistent, high-quality output.

Q: How does the automatic operation benefit industrial applications?

A: Automatic operation dramatically reduces manual intervention, allowing for faster production speeds, uniform quality, and minimized errors. This boosts operational efficiency and ensures accurate reproduction of intricate designs on every workpiece.
